6TL Engineering Test Solutions Provider for the Electronics Manufacturing Arena 6TL is a pioneer in applying the modularity concept to the design of Automatic Test Equipment for electronics products. The FastATE technology is the core to develop turn-key solutions that are trully modular, scalable and flexible, and thus we help to make the job of both, the test engineer and the budget manager, much easier.
Thumbnail

Categorieën:

Subcategorieën:

6TL Test Fixtures
When testing a loaded PC Board, the contact between the board and the measurement instrumentation is very important. A linear mechanical fixture from 6TL will give you the quality needed to make a reliable contact over and over again.
6TL Test Fixtures
When testing a loaded PC Board, the contact between the board and the measurement instrumentation is very important. A linear mechanical fixture from 6TL will give you the quality needed to make a reliable contact over and over again.
6TL01 cassette fixture
775,00
6TL01 cassette fixture Image

The 6TL-01, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable cassette, 6TL01-10 is included)

Fixture kit 6TL01

Customized 6TL01 cassette & fixture Kit

The reliability and accuracy of the contact between the test pad and the test probe in a test fixture is mainly determined by the mechanical construction used to bring the two together. In the MG6TL Test adapter the linear push down construction is therefore designed using solid aluminium parts. By means of ball bearings and a specially designed sliding bus we constructed a linear system with an accurate linear movement of 12mm. This allows PCB’s to be contacted from the top and bottom simultaneously. The wide base housing provides enough space for easy access to the wiring, additional electronics or mechanics. The back side and bottom side of the housing are easy removable and can be adapted to different test system interfaces, custom configurable cable or connector interfaces, professional Mass Interconnect interfaces from VPC (S6, G12 and G12X) or MAC Panel (Titan HZ) as well as solutions for most In-Circuit Test systems. The ESD safe cassette and Pusher Plate are easy removable and have a large usable working surface, depending on the model.

6TL01 Open

6TL01 + 6TL01-10 Open

– Solid construction guarantees a smooth and reliable operation, for the entire kit
– Modular approach removable aluminium back and bottom plate for integration and easy rework.
– Easy exchangeable Cassette system with optional Mass Interconnect ITA interface System (Only 6TL-02 & 03).
– ESD, easy to replace Perspex pusher plate as part of each Cassette including pushers and PCB supports.
– Linear push down unit with 12mm linear stroke.
– Ergonomic design with gas strut support for easy opening
– One hand operation, “close and test”
– Optional switch-probe for Auto start and PCB detection.
– Maximum number of test probes: +/- 900 (2000N)
– Optional Top-Probing possible
– Optional mechanical Side-Probing possible.

Assembly information 6TL kits

Click on picture for assembly info.

Download here the brochure of the 6TL range of test fixtures.

6TL02 cassette fixture
1.195,00
6TL02 cassette fixture Image

The 6TL-02, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable cassette, 6TL02-10 is included)

6TL03 + 6TL03-10

6TL02 fixture + 6TL02-10 cassette

The reliability and accuracy of the contact between the test pad and the test probe in a test fixture is mainly determined by the mechanical construction used to bring the two together. In the MG6TL Test adapter the linear push down construction is therefore designed using solid aluminium parts. By means of ball bearings and a specially designed sliding bus we constructed a linear system with an accurate linear movement of 12mm. This allows PCB’s to be contacted from the top and bottom simultaneously. The wide base housing provides enough space for easy access to the wiring, additional electronics or mechanics. The back side and bottom side of the housing are easy removable and can be adapted to different test system interfaces, custom configurable cable or connector interfaces, professional Mass Interconnect interfaces from VPC (S6, G12 and G12X) or MAC Panel (Titan HZ) as well as solutions for most In-Circuit Test systems. The ESD safe cassette and Pusher Plate are easy removable and have a large usable working surface, depending on the model.

Top Probing

Top probing in a 6TL02 or 6TL03

– Solid construction guarantees a smooth and reliable operation, for the entire kit
– Modular approach removable aluminium back and bottom plate for integration and easy rework.
– Easy exchangeable Cassette system with optional Mass Interconnect ITA interface System (Only 6TL-02 & 03).
– ESD, easy to replace Perspex pusher plate as part of each Cassette including pushers and PCB supports.
– Linear push down unit with 12mm linear stroke.
– Ergonomic design with gas strut support for easy opening
– One hand operation, “close and test”
– Optional switch-probe for Auto start and PCB detection.
– Maximum number of test probes: +/- 900 (2000N)
– Optional Top-Probing possible
– Optional mechanical Side-Probing possible.
Options only available for the 6TL-02 and 03
– Optional internal Mass Interconnect interface with up to 640 signal points or a mix with Power and/or coax.
– Optional “Smart Fixture Support” integration of 6TL YAVPacks

Assembly information 6TL kits

Click on picture for assembly info.

Download here the brochure of the 6TL range of test fixtures.

6TL03 cassette fixture
1.475,00
6TL03 cassette fixture Image

The 6TL-01, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable Cassette, 6TL03-10 is included)

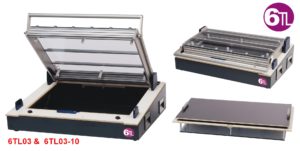

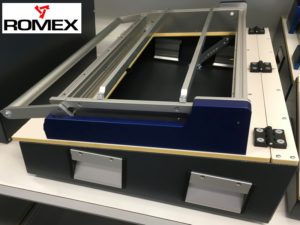

6TL03 + 6TL03-10

6TL03 fixture + 6TL03-10 cassette

The reliability and accuracy of the contact between the test pad and the test probe in a test fixture is mainly determined by the mechanical construction used to bring the two together. In the MG6TL Test adapter the linear push down construction is therefore designed using solid aluminium parts. By means of ball bearings and a specially designed sliding bus we constructed a linear system with an accurate linear movement of 12mm. This allows PCB’s to be contacted from the top and bottom simultaneously. The wide base housing provides enough space for easy access to the wiring, additional electronics or mechanics. The back side and bottom side of the housing are easy removable and can be adapted to different test system interfaces, custom configurable cable or connector interfaces, professional Mass Interconnect interfaces from VPC (S6, G12 and G12X) or MAC Panel (Titan HZ) as well as solutions for most In-Circuit Test systems. The ESD safe cassette and Pusher Plate are easy removable and have a large usable working surface, depending on the model.

Guide Blocks

New Improved guide blocks

– Solid construction guarantees a smooth and reliable operation, for the entire kit
– Modular approach removable aluminium back and bottom plate for integration and easy rework.
– Easy exchangeable Cassette system with optional Mass Interconnect ITA interface System (Only 6TL-02 & 03).
– ESD, easy to replace Perspex pusher plate as part of each Cassette including pushers and PCB supports.
– Linear push down unit with 12mm linear stroke.
– Ergonomic design with gas strut support for easy opening
– One hand operation, “close and test”
– Optional switch-probe for Auto start and PCB detection.
– Maximum number of test probes: +/- 900 (2000N)
– Optional Top-Probing possible
– Optional mechanical Side-Probing possible.
Options only available for the 6TL-02 and 03
– Optional internal Mass Interconnect interface with up to 640 signal points or a mix with Power and/or coax.
– Optional “Smart Fixture Support” integration of 6TL YAVPacks

Assembly information 6TL kits

Click on picture for assembly info.

Download here the brochure of the 6TL range of test fixtures.

6TL01-10 cassette
175,00
6TL01-10 cassette Image

6TL01 Cassette Fixture

6TL01 Cassette Fixture

The 6TL01-10 cassette is a complete exchangeable cassette for the 6TL01 fixture kit, including ESD safe perspex top/pusher plate.
The complete cassette can handle loaded PCB’s up to a contact size of Max 194mm x 114mm (HxW)

Assembly information 6TL kits

Click on picture for assembly info.

6TL02-10 cassette
310,00
6TL02-10 cassette Image

6TL02 Cassette Fixture

6TL02 Cassette Fixture

The 6TL02-10 cassette is a complete exchangeable cassette for the 6TL02 fixture kit, including ESD safe perspex top/pusher plate.
The complete cassette is suitable to test loaded PCB’s up to a contact size of Max 337mm x 250mm (HxW)

Assembly information 6TL kits

Click on picture for assembly info.

6TL03-10 Cassette
345,00
6TL03-10 Cassette Image

6TL03 Cassette Fixture

6TL03 Cassette Fixture

The 6TL03-10 cassette is a complete exchangeable cassette for the 6TL03 fixture kit, including ESD safe perspex top/pusher plate.
The complete cassette is suitable to test loaded PCB’s up to a contact size of Max 580mm x 250mm (HxW)

Assembly information 6TL kits

Click on picture for assembly info.

AA413 Exchangeable Fixture kit (250x300mm) for 6TL08-N
690,00
AA413 Exchangeable Fixture kit (250x300mm) for 6TL08-N Image

6TL-08 Table-top Tester

6TL-08N Table-top Tester

Fixture cassette to be used in the 6TL-08N or 6TL-08W (Adaption kit needed)
This cassette Includes an ITA frame for 8 YAVmodules or VPC 90 series modules.

The kit consists off:
1) A 10mm thick ESD perspex top pusher plate with 10 push fingers and 4 protection plate push rods. 2) A 5mm thick probe protection plate, includes two handles for easy removal and placement of the kit into the 6TL-08 and 2 guide pins.

Assembly information 6TL kits

Click on picture for assembly info.

3) A 10mm thick probe plate with springs and bearings to align the probe protection plate. (max PCB size 250x300mm)
4) 3mm thick perspex receptacle protection plate
5) 6TL-08,  VPC 90 compatible series Mass Interconnect ITA with 8 ITA slots.

Click to Download the 6TL-08 catalogue for more information:
Click to Download the Fixture Kit 3D Step block
Click to Download the Fixture Kit design rules

AA639 Exchangeable fixture kit (230mmx580mm) 6TL08W
930,00
AA639 Exchangeable fixture kit (230mmx580mm) 6TL08W Image
6TL-08 Table-top Tester

6TL-08N Table-top Tester

Fixture cassette to be used in the 6TL-08N or 6TL-08W (Adaption kit needed)
This cassette Includes an ITA frame for 8 YAVmodules or VPC 90 series modules.

The kit consists off:
1) A 10mm thick ESD perspex top pusher plate with 10 push fingers and 4 protection plate push rods. 2) A 5mm thick probe protection plate, includes two handles for easy removal and placement of the kit into the 6TL-08 and 2 guide pins.

Assembly information 6TL kits

Click on picture for assembly info.

3) A 10mm thick probe plate with springs and bearings to align the probe protection plate. (max PCB size 250x300mm)
4) 3mm thick perspex receptacle protection plate
5) 6TL-08,  VPC 90 compatible series Mass Interconnect ITA with 8 ITA slots.

Click to Download the 6TL-08 catalogue for more information:
Click to Download the Fixture Kit 3D Step block
Click to Download the Fixture Kit design rules

6TL Test Fixtures
When testing a loaded PC Board, the contact between the board and the measurement instrumentation is very important. A linear mechanical fixture from 6TL will give you the quality needed to make a reliable contact over and over again.
6TL01 cassette fixture Image
6TL01 cassette fixture
The 6TL-01, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable cassette, 6TL01-10 is included) ... Lees meer
775,00
6TL02 cassette fixture Image
6TL02 cassette fixture
The 6TL-02, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable cassette, 6TL02-10 is included) ... Lees meer
1.195,00
6TL03 cassette fixture Image
6TL03 cassette fixture
The 6TL-01, is a flexible linear cassette adapter, with a solid hinged top plate on an ergonomically shaped rugged housing. (Exchangeable Cassette, 6TL03-10 is included) ... Lees meer
1.475,00

het bouwen van een testsysteem met 6TL is als werken met LEGO.

FastATE van 6TL is een concept voor engineers die zelf een testsysteem willen bouwen. Voor engineers is er niets leuker dan zelf te ontwikkelen., maar dit is niet altijd verstandig. Vaak ontbreekt de basiskennis en ervaring en ontstaat er een groot gevaar in de vele valkuilen te stappen bij het ontwikkelen van een testsysteem. Doe waar u goed in bent en laat u ondersteunen en voorlichten over zaken die u normaal gesproken nooit doet.

Bedrijfspresentatie 6TL Engineering.

fastATE is een techniek die u als engineer in staat stelt een ideaal test systeem te construeren zonder het gevaar van de vele valkuilen. Het fastATE concept bestaat uit vele modules waardoor de opbouw van een testsysteem net zo eenvoudig wordt als iets bouwen met Lego. Een overzicht van een groot deel van de beschikbare modules vindt u hieronder in een lijst. Als u zich voor de vraag gesteld ziet:  BUILD OR BUY een deel of uw gehele testsystem, lees dan eerst onze informatiebrief over dit onderwerp.

Onze specialisten komen graag bij u langs om uit te leggen waarom fastATE ook voor u de beste oplossing is.
Maak eventueel gebruik van de SEND message tab, rechts onder om ons direct te contacteren.

Hieronder vindt u een opsomming van alle beschikbare fastATE modules, deze zijn sorteerbaar op categorie en productgroep. Het kan even duren voor de lijst zichtbaar wordt.
Voor prijsinformatie kunt u contact met ons opnemen of een login code aanvragen en op onderstaande pagina de prijzen zelf bekijken.


Sample modular solutions created using FastATE technology from 6TL.
