QRM (Quality Result Management)

Quality-960x380QRM software solution, stands for Improved Yield, Quality and Decision Making.

QRM is a web based result management system that stores and analyses test results. It is a flexible system using web servers, databases and ATML XML data which can be set-up on a single computer, servers or cloud solutions. ATML (Automated Test Markup Language) is an XML standard to exchange test data.

QRM Software

All important information at your fingertips.

  • Powerful web interface – easy access to view and analyze yor results in your browser
  • Ability to connect production sites – post ATLM XLM reports from all over the world using HTTP
  • Instant production feedback – watch test results as they are produced
  • Easy exporting of data – export your test data directly to Excel or Minitab as a CSV file
  • Built-in SPC and MSA – perform SPC and MSA analysis directly in the web interface
  • TestStand result processor – connect your TestStand system directly to QRM

Architecture

QRM is a distributed system that can be configured in different ways to match your needs and IT infrastructure. QRM data consists not only by the measurement data, but also a lot of additional information such as traceability of the station and equipment used, configuration version and additional UUT (Unit Under Test) information.

It is also possible to attach any kind of file with the reports (graphs, log files etc).

QRM Consists of three major parts

  • Database.   The test data repository in SQL Server
  • Storage System.  Storing and synchronizing test data over the internet using ATML and web services to the database in a robust and secure way.
  • Presentation and Analysis System. Presentation, report and statistical analysis of test data through a web application

Each test program acts as a QRM storage client that post test results as ATML XML reports. The reports are handled by a HTTP web service that will forward data over a secured network connection.
The web service can also store the test result to the QRM result database.
The service is very robust and if the network is temporarily unavailable, the service will store the reports locally and retry until it succeeds. Multiple sites can be connected by using the distributed architecture of QRM. The QRM Web application is used to view and analyse test results as products are being produced.

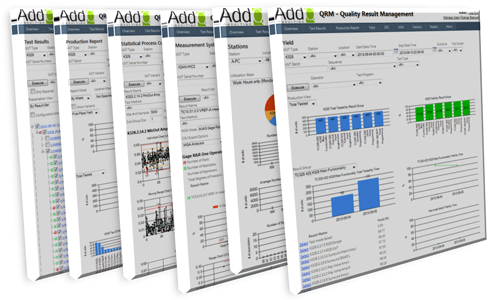

Web Interface

QRM has a powerful web interface for easy access to view and analyze the test results. It is also possible to generate pdf-reports and export data to both Excel and Minitab.

  • Overview – get fast overview of the production and yield from all over the world
  • Test Report – view test results and generate PDF-reports
  • Production Statistics – view produced units, yield, and most common faults over time based on product, variants, stations or locations and generated PDF-reports or export to Excel
  • Yield Analysis – break down yield problems into the measurements that cause the low yield
  • SPC – Perform statistical process control analysis to verify that your measurement process is stable and under control by using the common SPC methods and diagrams in order to fine tune your requirements
  • MSA – Perform a Measurement System Analysis to verify that your measurement system is not the source of variations in your measurements. Automatically perform Gage Type I or Gage R&R analysis
  • Repairs – Manage repairs for your units to track repaired units and the most common repairs
  • Station Utilization – Analyze how your test stations are utilized by type of product tested, test times and utilization by day
QRM Explained!!

QRM Benefits

  • You remain the only owner of the results and the system.
  • easy to move between suppliers
  • see same information as your suppliers

Fast production feedback

  • see results and yield within minutes

Easy access

  • web based
  • reports
  • statistics

System Requirements

  • Microsoft Windows 7/Windows 8/Server 2008 R2
  • Microsoft SQL Server 2005/2008 R2/2012 all versions (license is not included)
  • Browsers IE (Internet Explorer), Firefox, Safari and Chrome are all supported
  • Client QRM ATML drivers available for LabVIEW, TestStand and .NET

Award finalist at NIWeek 2015 in Austin.

During NIWeek 2015 in Austin Texas, the Quality Result Management (QRM) software solution was one of the Award finalists for the Alliance partner and Tools Network from National Instruments. This award recognizes achievements in innovation and is designated for outstanding software apps and add-ons on the LabVIEW Tools Network.

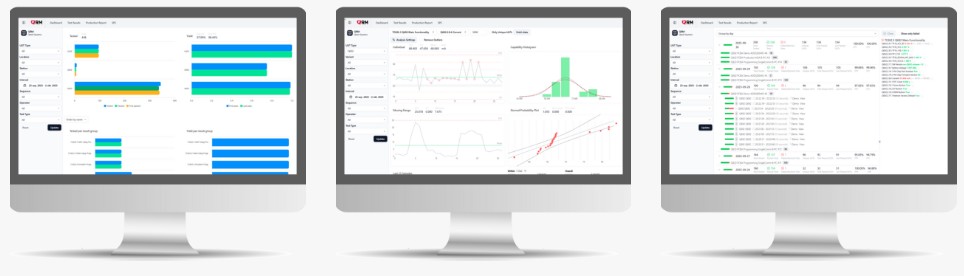

Check below some images taken from the actual Browser screen you get after your login.


Want to try it YOURSELF?

Contact Romex or send us a message and ask for a Username and password through the message box in the bottom right hand corner of your browser.

When you received your username and password in your e-mail box you click here and you just follow the instructions.
You will be taken to a demo server that contains life data so you can see all the options that will be available to you after you have purchased the product.

If you are convinced that this product is something for your company just ask for the VIPM Labview client or the Teststand Result Processor plugin client that after installation and simple configuration, will start immediately with the upload of your test and measurement data to your temporary demo database. You can then also start QRM immediately to analyse your test data and experience the power of QRM yourself.  (The data uploaded by you will be only visible by you and will be automatically erased after midnight, Central European time.) If you want more time then ask us for the possibilities. All needed programs can be downloaded from our QRM Download Page.  (Je hebt hiervoor een password nodig, neem hiervoor contact op met pvo@romex.nl.)

Learn how simple it is to install and  configure your Teststand or Labview client to start uploading all your measurement data for QRM analysis in the video’s below.

So only if you are happy about the product and have seen all its possibilities at work you ask us for a quotation for the requested amount of test stations, type of installation, local server or cloud server, etc.


Want to learn all about the QRM, CRM and Test analysis? Simply watch the English spoken instructions video’s below.

Introduction to QRM
QRM, How it Works.
How to Install the Teststand Client Plugin
How to install the QRM Labview client.
How to analyse your Test results.
How to analyse your SPC data in QRM.
How to use the QRM webapplication
