Overview Romex Clip connectoren

Most commonly used clip connector models in our range.

These Clip connectors or flex circuit test connector can be used to fast, reliable and quickly connect any measurement instrument or test system to the connect area of a flat cable connection like an FFC (Flexible Flat Cable) and FPC (Flexible Printed Circuit) They are available in pitches off 0,2mm, 0,25mm, 0,3mm, 0,4mm, 0,5mm, 0,8mm, 1mm and 1,25mm in different pin configurations from 3 to 101 pins depending on the pitch and FFC or FPC layout. The contact with the FFC is made through high quality double ended mini Pogo pins or test probes. Special configurations can be delivered as well.

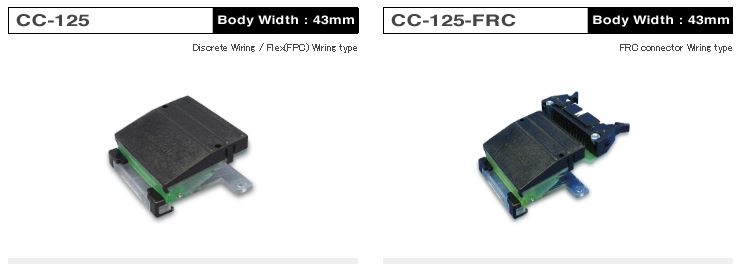

Standard Clip Connectors for 1,25 mm pitches.

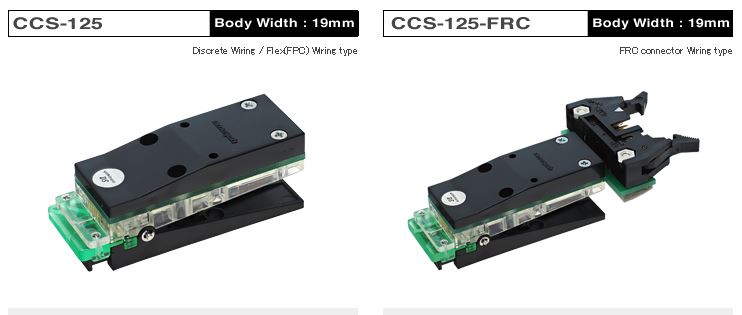

(3-10 pins).  Click the Image to enlarge it.
 Standard Clip Connectors for 1,25 mm pitches.
(6-26 pins).  Click the Image to enlarge it.

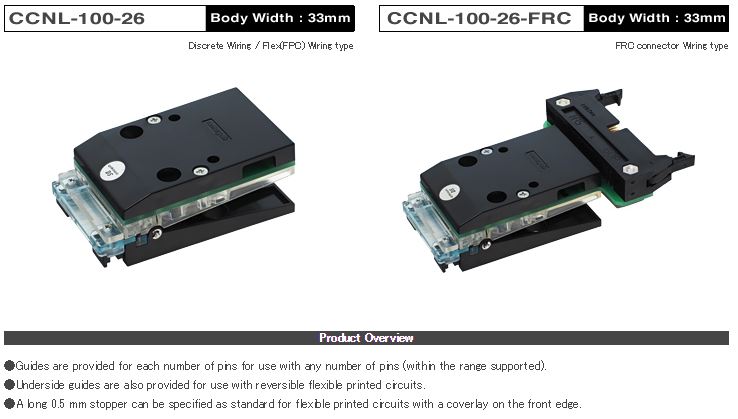

Romex CCS-125 Romex CCS-125-26

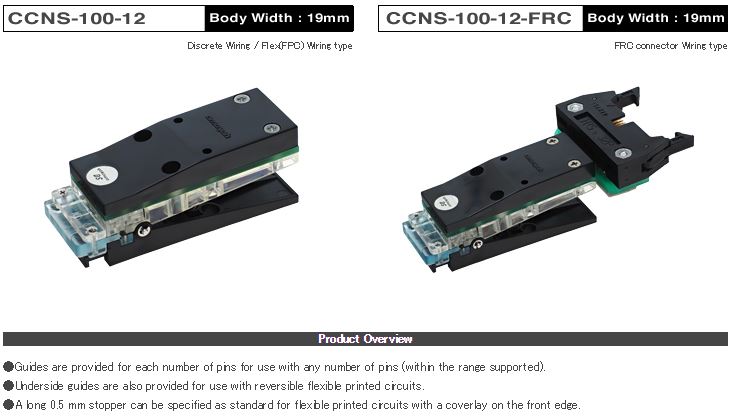

Standard Clip Connectors for 1 mm pitches.
(3-12 pins).  Click the Image to enlarge it.
 Standard Clip Connectors for 1 mm pitches.

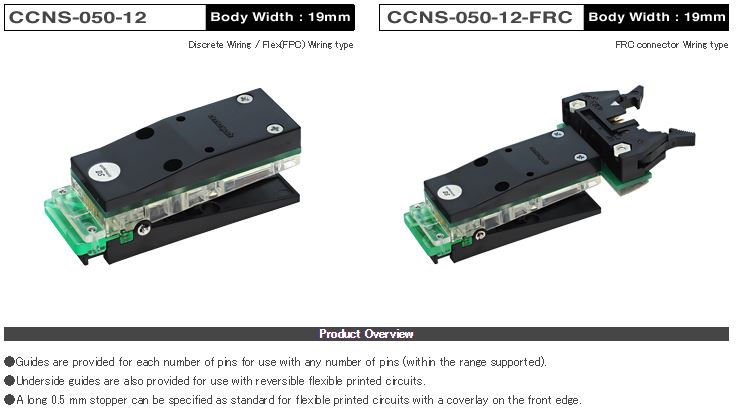

(13-26 pins).  Click the Image to enlarge it.
Romex CCNS-100-12 Romex CCNL-100-26
Standard Clip Connectors for 1 mm pitches.
(27-35 pins).  Click the Image to enlarge it.
Standard Clip Connectors for 0,8 mm pitches.
(4-17 pins).  Click the Image to enlarge it.

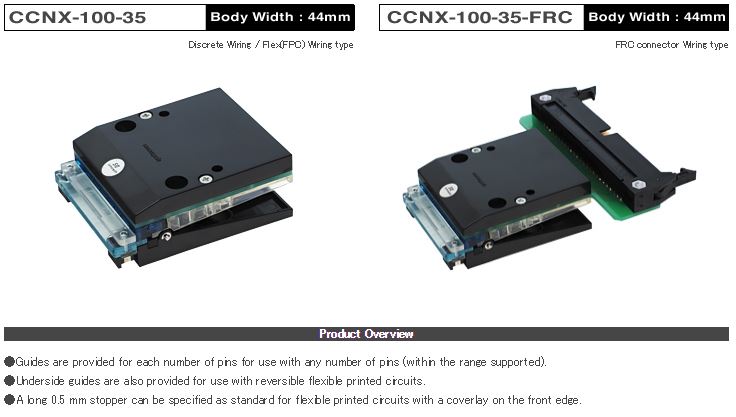

Romex CCNX-100-35 Romex CCNM-80-17
Standard Clip Connectors for 0,5 mm pitches.
(3-12 pins).  Click the Image to enlarge it.
Standard Clip Connectors for 0,5 mm pitches.

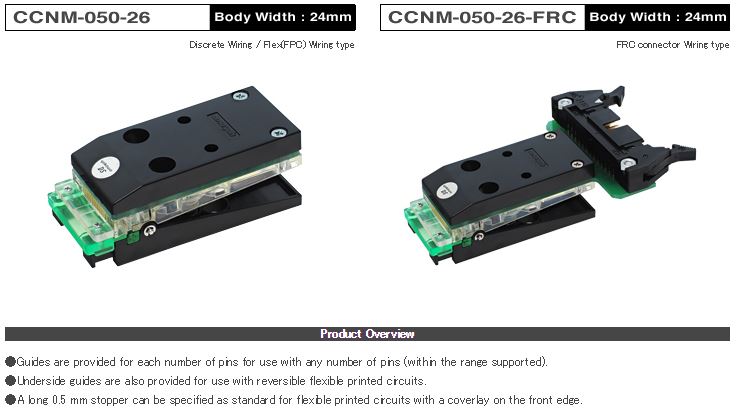

(13-26 pins).  Click the Image to enlarge it.
Romex CCNS-50-12 Romex CCNM-50-26
Standard Clip Connectors for 0,5 mm pitches.

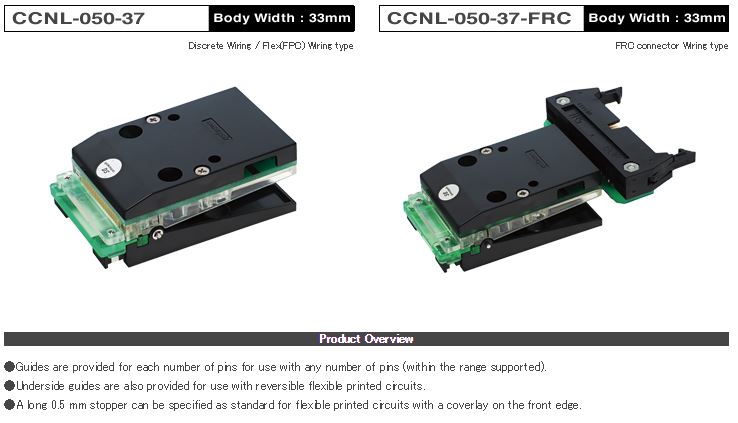

(27-37 pins).  Click the Image to enlarge it.
Standard Clip Connectors for 0,5 mm pitches.
(38-47 pins).  Click the Image to enlarge it.

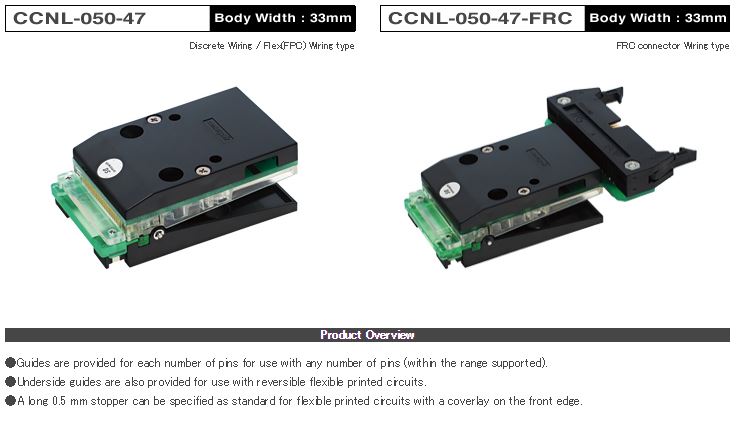

Romex CCNL-050-37 Romex CCNL-50-47
Clip Connectors for 0,5 mm pitches. (48-69 pins)
select your Pin-quantity.  Click the Image to enlarge it.

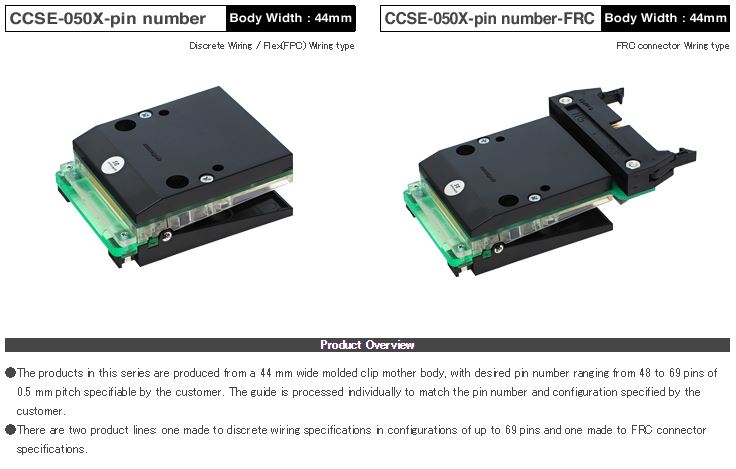

Clip Connectors for 0,4 mm pitches. (4-33 pins)
select your Pin-quantity.  Click the Image to enlarge it.

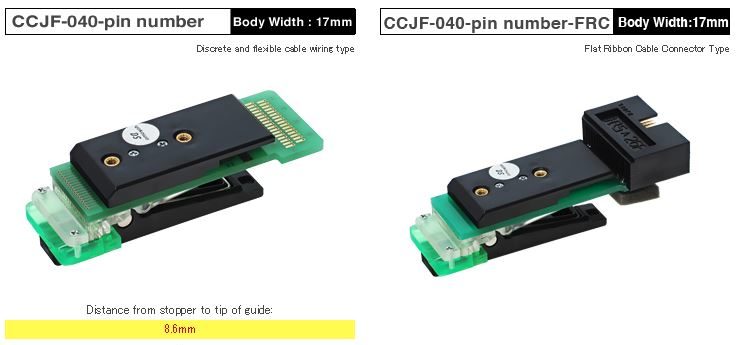

Romex CCSE-50X Romex CCJF-040

Romex CCJF-40 txt

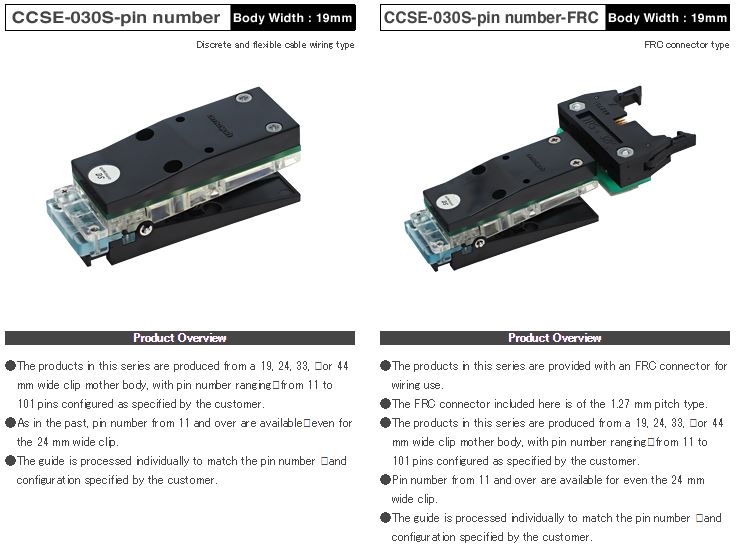

Clip Connectors for 0,3 mm pitches. (11-29 pins)
select your Pin-quantity.  Click the Image to enlarge it.

Clip Connectors for 0,3 mm pitches. (11-39 pins)
select your Pin-quantity.  Click the Image to enlarge it.

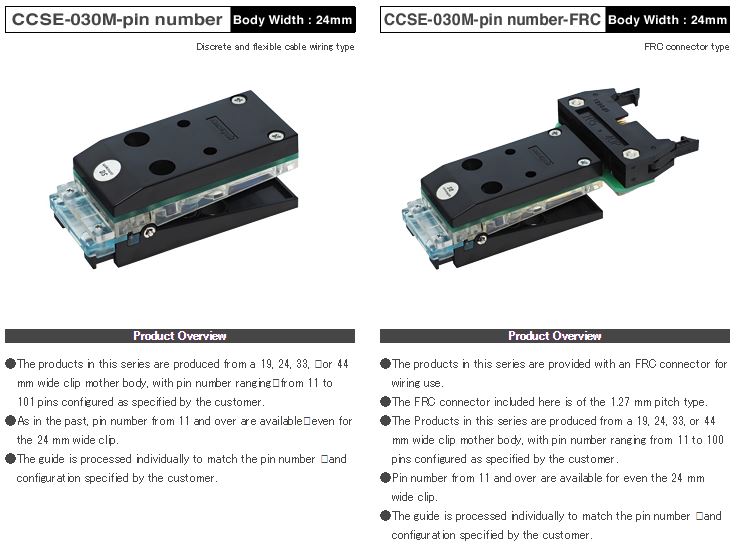

Romex CCSE-30S Romex CCSE-30M

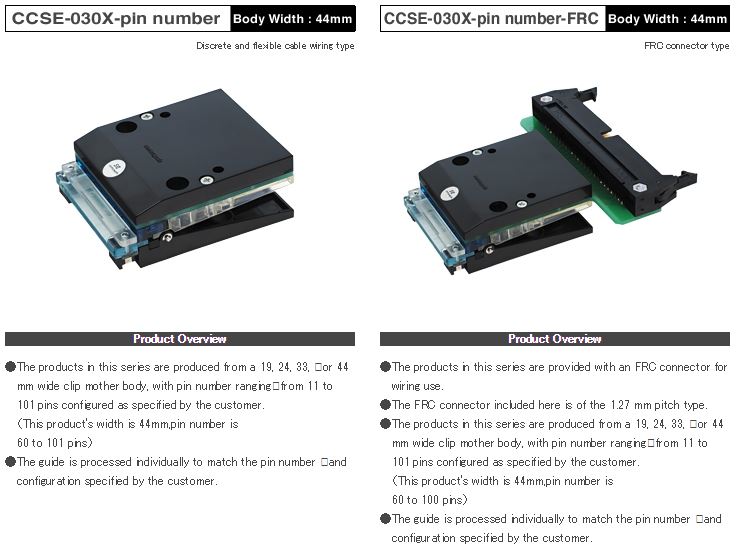

Clip Connectors for 0,3 mm pitches. (40-59 pins)
select your Pin-quantity.  Click the Image to enlarge it.
Clip Connectors for 0,3 mm pitches. (60-101 pins)
select your Pin-quantity.  Click the Image to enlarge it.
Romex CCSE-30L Romex CCSE 30X

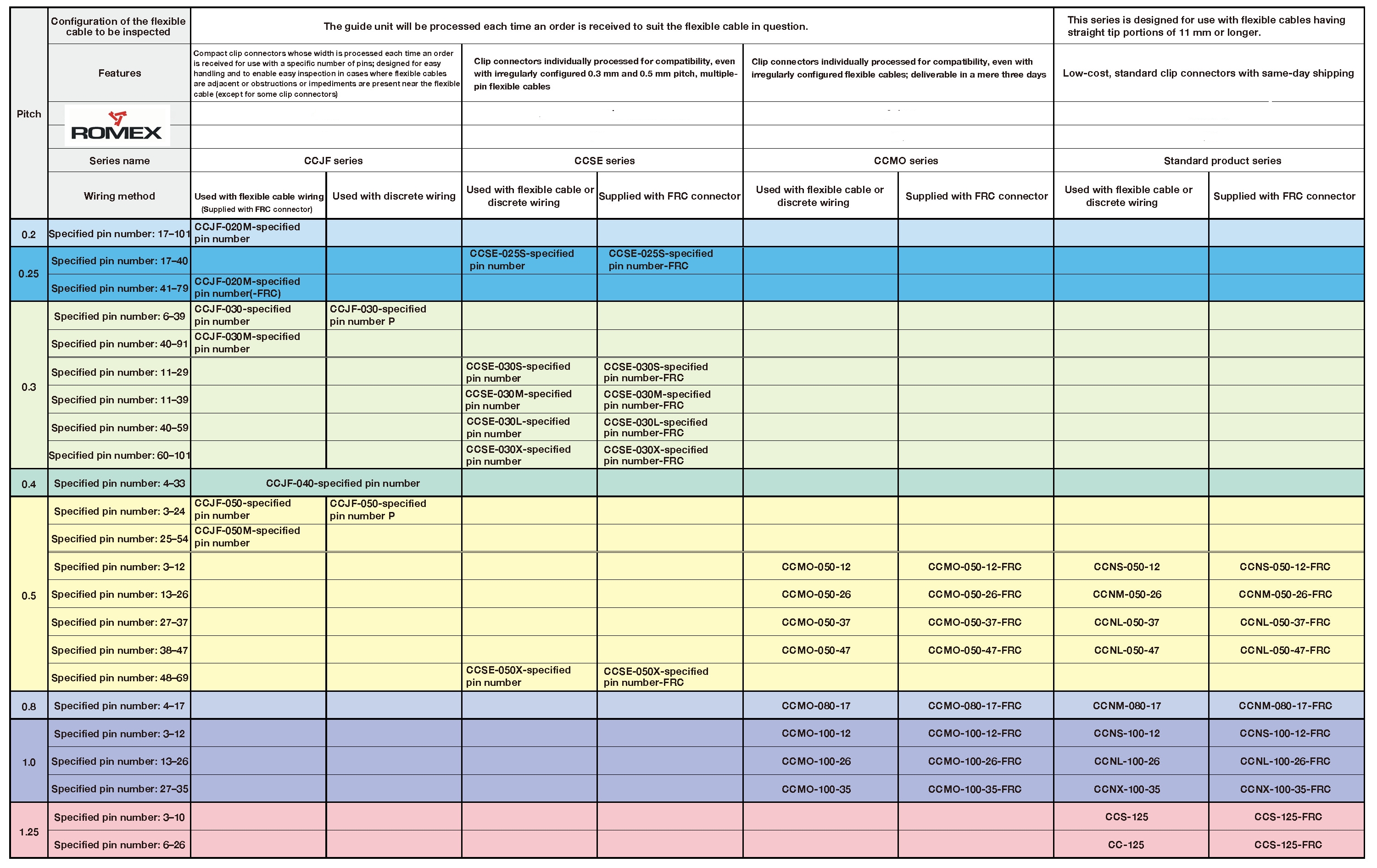

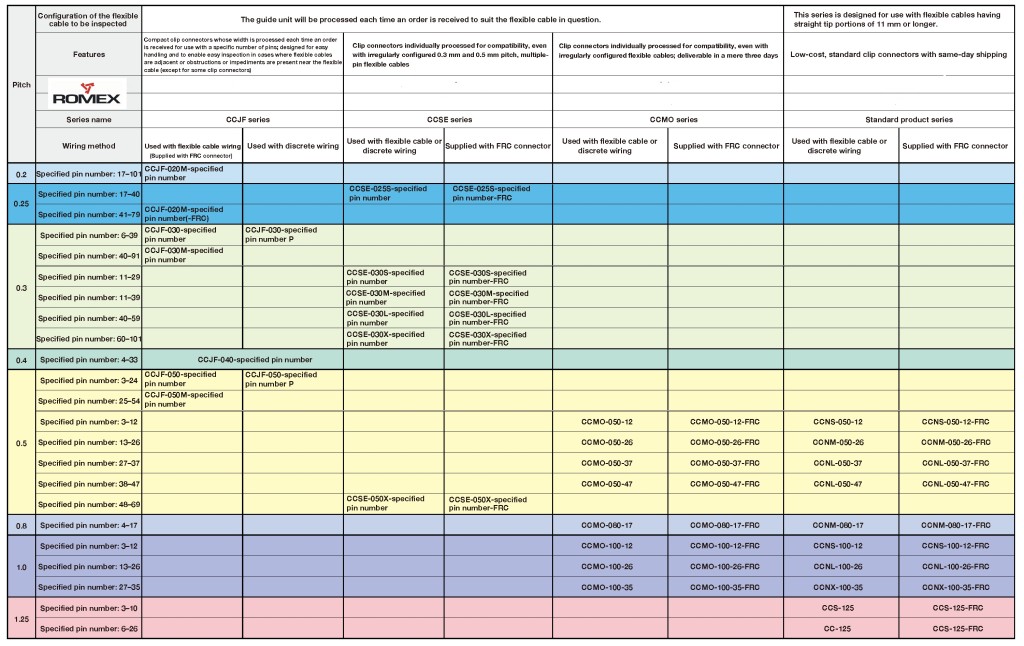

Find here an overview of all available clip connectors.

In the above table you find an overview of all available clip connectors, please click the image to enlarge it.
