6TL36 Test Handler RF & Conventional test.

6TL36 Test Handler RF & Conventional test.

6TL36 Test Handler RF

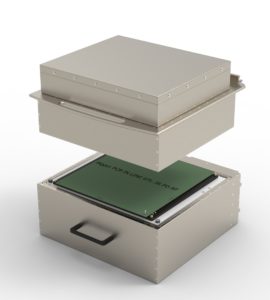

RF-exchangeable test fixture.

RF-exchangeable test fixture.

PN: AM304Categories: Tags:

  • Test handler 6TL36 able to test DUTs inside Faraday Chamber
  • Dual line (bypass)
  • Expandable to form a group with several 6TL36 modules (adapt line to production volumes).
  • ICT, FCT with RF, ISP or Combined test (ICT+FCT)
  • Servocontrolled DUT stop (stoper-less system)
  • Exchange time 3,2s
  • Max. PCB dimension 380x388mm (340x350mm for RF)
  • 19” rack space for instruments integration: 28UH
  • Receiver 25 slots in probe plate + 4 slots in push plate
  • Automatic Conveyor width adjustment
  • High dynamics conveyors (2000 mm/s)
  • 6TL high dynamics conveyor system is needed to work with the 6TL-36 test handler.
  • 90mm Top-30mm Bottom Component clearance
  • SMEMA and Hermes standard
  • CE



The 6TL36 test handler is the first ATE handler on the market that easily integrates the radio frequency tests into mass production lines.

The modular approach of the 6TL36 offers the possibility of adding handlers together for a work in parallel that reduces the cycle time and saves costs as well as space, when comparing to traditional parallel solutions. Therefore, the system can be ordered with only one conveyor, with two conveyors (bypass or dual-line) and with three conveyors (Retour conveyor).

The 6TL36 is the best production solution to test the products that feature the latest challenges set out by the IoT and the manufacturing of connected products.
