AK087 CanBus Multi Sensor for ATE.

AK087 CanBus Multi Sensor for ATE.


AK087; CAN Bus ºC, %RH & hPa Transmitter

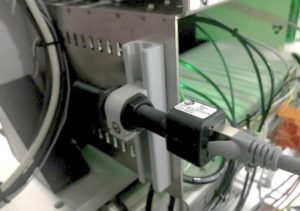

Sensor in Test system

Humidity sensor in Test system

• Atmospheric Pressure
• Relative Humidity Accuracy + 2%
• Temperature Accuracy + 0.2ºC

• CAN Bus Interface at 50 kbps
• Low cost RJ45 Connector
• Addresses up to 16 units
• LabVIEW drivers available

AK076 CanBus controlled Machine Sensor.

Canbus sensor

AK087 CanBus Machine Sensor

The AK076 transmitter will be used to log the environment conditions during the test runs in the Automatic Test Equipment (ATE). Transmission of data is done through CAN bus. Its physical shape and low dimensions allow an easy mounting and accurate sensor positioning. The electrical connection is via an 8 wire RJ45 connector, where power supply (2-wire), and CAN are included.

Category: Sensors & Monitoring
Sub-Category: Sensors for ATE Systems
